$120Tpd Customized Cross Fired Furnace Refractory Material Glass Melting Furnace$

120Tpd Customized Cross Fired Furnace Refractory Material Glass Melting Furnace

Name: 120Tpd Customized Cross Fired Furnace Refractory Material Glass Melting Furnace
Brand: JEFFER Engineering and Technology Co.,Ltd
SKU: Customization
Availability: InStock

Rincian Produk

Place of Origin: China

Nama merek: JEFFER

Sertifikasi: ISO9001,ISO14001,ISO45001

Model Number: Customization

Ketentuan Pembayaran & Pengiriman

Minimum Order Quantity: 1 Set

Harga: dapat dinegosiasikan

Packaging Details: Wooden Case, Tray, Steel Frame, Etc

Delivery Time: 180 Days After Receiving the Down Payment

Payment Terms: T/T, L/C

Supply Ability: 1 Set per 6 Months

Dapatkan Harga Terbaik

Hubungi sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:

Dimension:	Customized	Condition:	New
Application:	Glass Industry	Voltage:	380V
Pproduct:	Glass	Color:	Customized
Fuel Type:	Heavy Oil	Warranty:	One Year
Type:	Cross fired furnace	After-sales Service:	Engineering Overseas Service Available

Dimension:	Customized
Condition:	New
Application:	Glass Industry
Voltage:	380V
Pproduct:	Glass
Color:	Customized
Fuel Type:	Heavy Oil
Warranty:	One Year
Type:	Cross fired furnace
After-sales Service:	Engineering Overseas Service Available

Deskripsi

120Tpd Customized Cross Fired Furnace Refractory Material Glass Melting Furnace

120Tpd Customized Cross Fired Furnace Refractory Material Glass Melting Furnace

1. Brief Introduction

Glass furnace is a melting device, which is the most necessary and important equipment for the glass industry.

The melting process is divided into five stages as following, each section has its inner connection, affecting each other. If one stage has imperfect performance, it will influence the next stage, and ultimately affect the quality of glass.

The direction of flames of a cross fired furnace is from one side to the other side, which is across the width of the furnace and perpendicular with the flow direction of glass liquid.

Glass melting is a very complex process, it includes physical, chemical and physicochemical phenomena and reaction. These phenomena and reaction lead the mechanical mixed raw materials to complex melting glass liquid.

2. Feature

1	High productivity
2	Longitudinal temperature adjustable

3. Structure of furance

1	Melting section
2	Breast wall
3	Crown
4	Port
5	Regenerator
6	Cooling section
7	Flue channel
8	Double deck reversing unit
9	Waste heat treatment system

4. Main component

Melting tank

The melting tank is combined with melting area and clearing area.

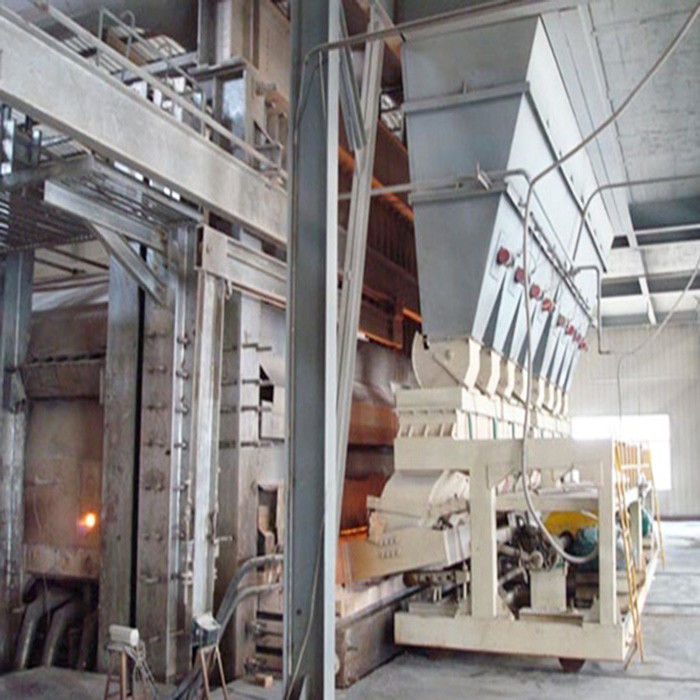

$120Tpd Customized Cross Fired Furnace Refractory Material Glass Melting Furnace 0$

Regenerator

The regenerator as a waste heat recovery device, the combustion air flows through the regenerator, after preheated, it will arrive at the furnace through the port.

Port

It is the place where the fuel is mixed with the preheated air, also an access for the preheated air in to the furnace and exhausting the

waste gas out.
